Philips oxygen concentrator SimplyGo, mobile, bag / trolley

4.332,42 €

incl. 19% VAT ,

Currently out of stock

SKU: PI1069058
GTIN: 1069058
Shipping weight: 4,80 kg

Best advice on
medical products

Fast delivery
available items

High-quality
brands

Purchase on account

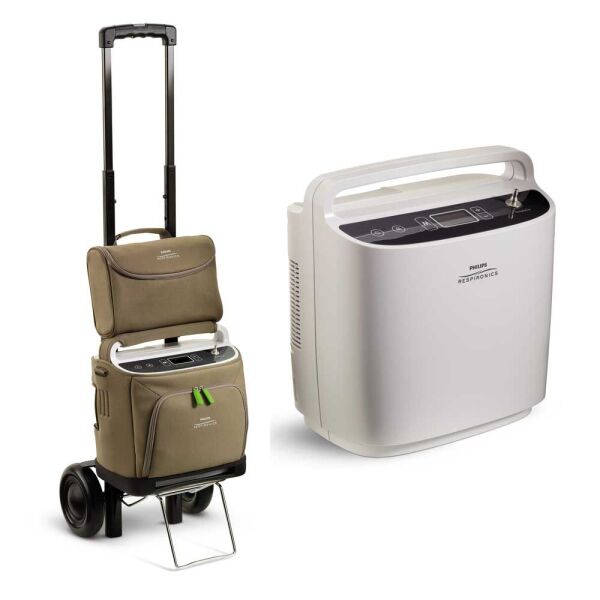

Product details of oxygen concentrator SimplyGo

The SimplyGo oxygen concentrator from Philips is the first portable device on the market that makes oxygen delivery on the move so enjoyable.

Due to its low weight of just 4.5 kg and a size of 29.2 x 25.4 x 15.2 cm, it can easily be transported and carried along with the accompanying carrying case and the easy-to-carry trolley. Thus, he also offers himself as an ideal travel companion.

The 3 selectable modes - continuous flow mode, pulse mode or sleep mode - it is optimally adapted to all needs. Also, the operation is very easy and clear, because the concentrator has few buttons and a clear display which are meaningful and not confusing.

The scope of supply includes the SimplyGo oxygen concentrator, a carrying case and an accessory pouch, a trolley, a rechargeable lithium-ion battery, a DC and AC power cable and a user manual.

Application description of oxygen concentrator SimplyGo

Charge the battery in the SimplyGO
Put the device in a carrying case
if necessary, use charged battery if externally charged
Connect nasal cannula
Commissioning the device (press the on / off button)
Select mode (M key)
Set pulse or flow rate (+/- buttons)
Pack required accessories
Oxygen concentrator with bag put on the trolley
Wear nasal cannula
start breathing through your nose
Start trip or walk

Properties of oxygen concentrator SimplyGo

portable
light: 4.5 kg
clear
simple and understandable operation
Operation via buttons
with display
3 modes selectable: continuous flow mode: 0.5 - 2 l / min., Pulse mode: breath-controlled 1-6, sleep mode: 1-6 higher trigger sensitivity
maintenance-free
including trolley, bag and accessory bag

Technical data of the oxygen concentrator SimplyGo

Oxygen concentration: 86 - 97%
continuous flow: 0.5 / 1 / 1.5 / 2 l / min
Bolus size pulse mode: 1 = 12 ml / 1.5 = 18 ml / 2 = 24 ml / 2.5 = 30 ml / 3 = 36 ml / 3.5 = 42 ml / 4 = 48 ml / 4.5 = 54 ml / 5 = 60 ml / 5.5 = 66 ml / 6 = 72 ml
Volume:
Device size: 29.2 x 25.4 x 15.2 cm
Mass. 4.5 kg
integrated bacterial filter
DC input power: 11.5 to 16V DC and max. 18A
DC output power: 19V DC and max. 7,9a
AC input power: 100 - 240 V AC 50-60 Hz / 1.7A max.
AC output power: 19 V DC and max. 7,9a
Alarm signals: low oxygen unit, breathlessness, high respiratory rate, no flow, empty battery, wrong battery, technical system error
Lithium-ion battery. 14.4 V DC, 6600 mAH, 0.7 kg
Charging time 2-3 hours per battery when fully discharged
Battery life: Plus mode, level 2: approx. 3 hours
Battery life: Continuous flow 2 l / min: approx. 54 min.
Areas of application of the CPAP device
for oxygenation while traveling and traveling
approved for use in aircraft (FAA)

important NOTE

when used in the aircraft, the respective airline must be contacted prior to commencing the flight

Brand: “PHILIPS”

Philips Respironics manufactures state-of-the-art medical devices and accessories for use in sleep therapy and other oxygen or aerosol therapies. Philips Respironics breathing masks are extremely comfortable to wear and have minimal face contact - for example as CPAP nasal masks. Our range includes mobile sleep therapy devices and accessories such as lithium-ion batteries and oxygen concentrators. Furthermore, Philips Respironics manufactures nebulisers, which enable fast and effective treatments for asthma or COPD, for example.
