Luxamed F.O. Macintosh Blade Integrated Light Guide, 0 - 5

from

84,13 €

incl. 19% VAT , plus

Available immediately

Größe: 1 1

2 2

3 3

3C 3C

4 4

5 5

0 0

This item has variations. Please select the requested variation.

SKU: LUE1410012K
Shipping weight: 0,25 kg

Best advice on
medical products

Fast delivery
available items

High-quality
brands

Purchase on account

Product details for: "Luxamed F.O. Macintosh Blade Integrated Light Guide, 0 - 5"

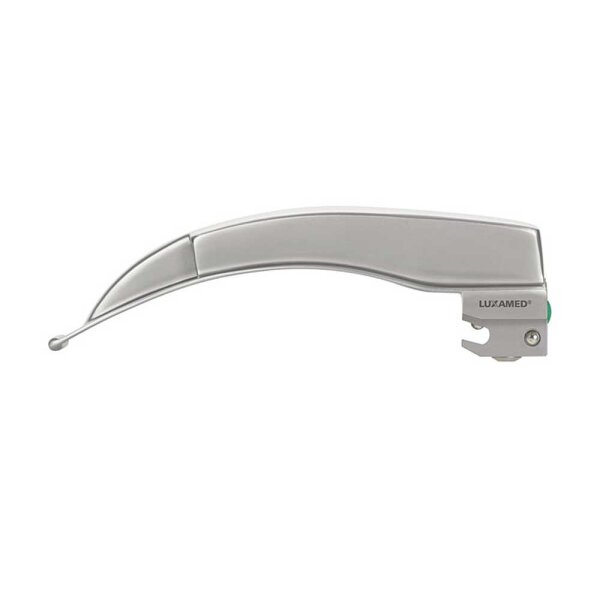

The Luxamed F.O. Macintosh Blade with integrated light guide is usable with laryngoscopes by Luxamed and is available in several different sizes.

The F.O. Macintosh blade by Luxamed uses an integrated light guide with 8.000 fibres for maximal brightness. It also has long service life. The 3.7 V LED version offers a brightness of approximately 14.000 Lux, while the 2.5 V xenon variant reaches circa 6.500 Lux. The stainless steel blade is compatible with all Luxamed handles in accordance with ISO 7376 (green standard). It is autoclavable up to 134 Degrees Celsius – for approximately 4.000 times. The Macintosh blade is available in several different sizes.

Properties of the F.O. Macintosh Blade

blade for laryngoscopes
integrated light guide
8.000 fibres
optimal illumination
long service life
brightness 2.5 V xenon: circa 6.500 Lux
brightness 3.7 V LED: circa 14.000 Lux
stainless steel
compatible with all Luxamed handles in accordance with ISO 7376 (green standard)
autoclavable up to 134 Degrees Celsius – approx. 4.000 times
different sizes available

Variants of the F.O. Macintosh Blade

Mac 0: length: 81 mm, height: 14 mm
Mac 1: length: 92 mm, height: 14 mm
Mac 2: length: 114 mm, height: 17 mm
Mac 3: length: 134 mm, height: 18 mm
Mac 3C: length: 134 mm, height: 18 mm (stronger curve for difficult intubations)
Mac 4: length: 154 mm, height: 18 mm
Mac 5: length: 174 mm, height: 23 mm

Brand: “LUXAMED”

Luxamed Medizintechnik is a German manufacturer of medical technology products, which are manufactured in Germany in highly qualified manual work. Luxamed is known for making excellent otoscopes, stethoscopes, laryngoscopes and other medical devices for daily use in doctors' offices and hospitals. Here in the shop you will also find examination lights, reflex hammers and accessories such as replacement handles, spatulas or lamps for the diagnostic devices of established brands such as Luxascope in the versions Auris, Flex or Kids.
